Dugout for the 150mm German Howitzer (LeFH-18)


The Blueprint

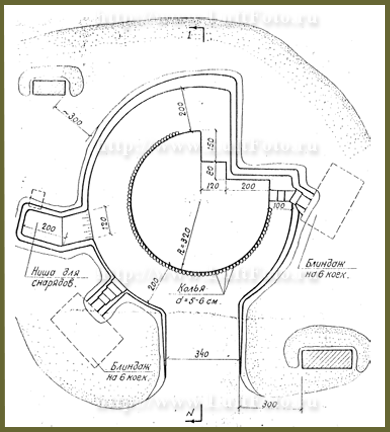

The blueprint of a Dugout for the 150mm German Howitzer (LeFH-18)

Dugout for the 150mm German Howitzer (Le FH-18) on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000


Dugout for the 150mm German Howitzer (LeFH-18), on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000

Dugout for the 220mm German howitzer

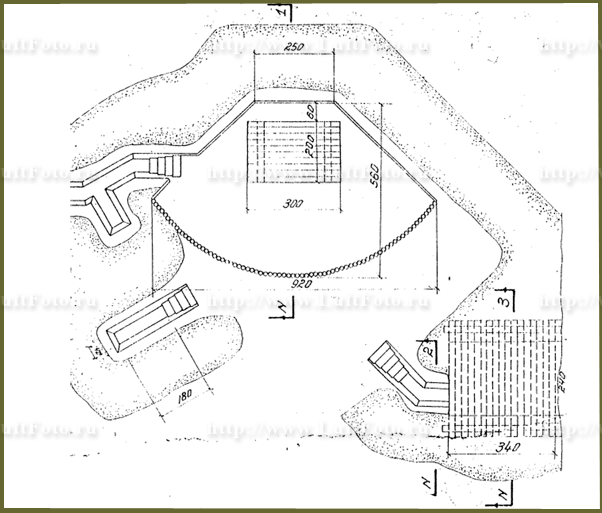

Blueprint


Окоп 220 ММ Пушки Гаубицы Чертеж

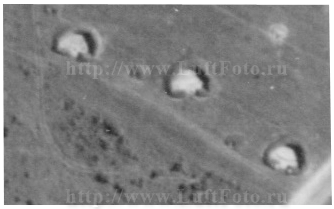

View on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000. Below, camouflaged dugout for the German 220mm Howitzer, with dugouts for the crew.


Dugout for the 220mm German howitzer on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000. Below, camouflaged dugout for the German 220mm Howitzer, with dugouts for the crew. Dugout for the 220mm German howitzer on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000

Battle trences for soldiers


The Blueprint

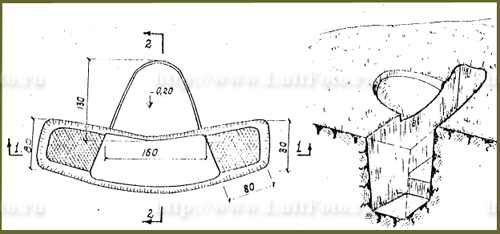

Battle trences for soldiers, the blueprint Battle trences for soldiers blueprint Battle trences for soldiers blueprint

Battle trences for soldiers, on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000.


Battle trences for soldiers, on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000 Battle trences for soldiers, on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000

Dugout for a german MachineGuns Crews (MG-34, MG-42)


The blueprint

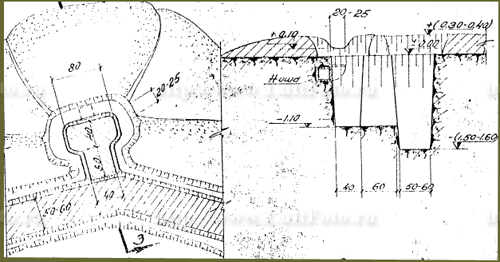

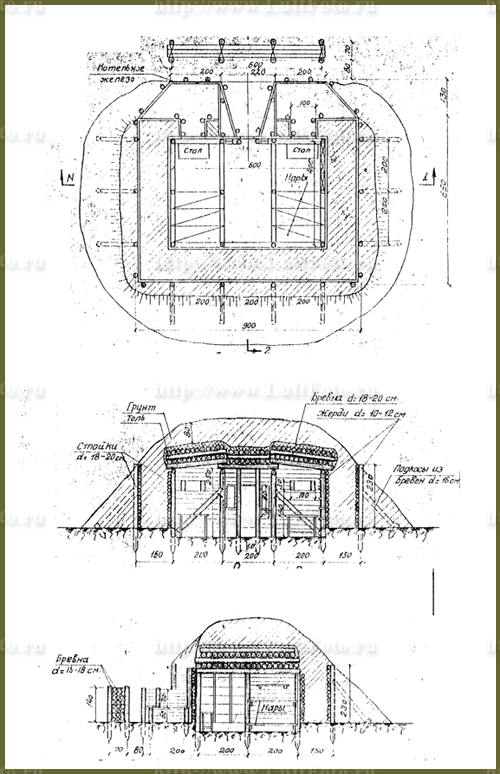

Dugout for a german MachineGuns Crews (MG-34, MG-42), the blueprint

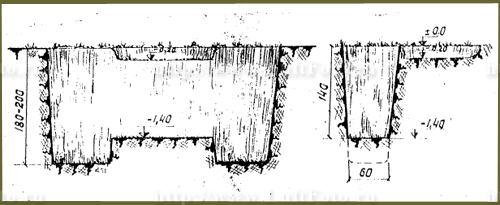

Dugout for a german MachineGuns Crews (MG-34, MG-42), the blueprint 2

Dugout for a german MachineGuns Crews (MG-34, MG-42) on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000 ~ 1:8000.


Dugout for german MachineGuns Crews (MG-34, MG-42) on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000 ~ 1:8000

The blueprint

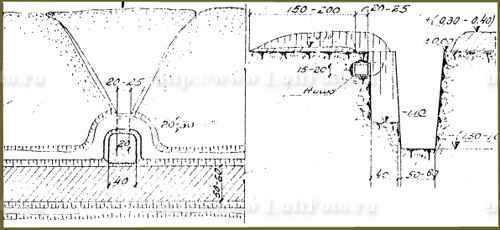

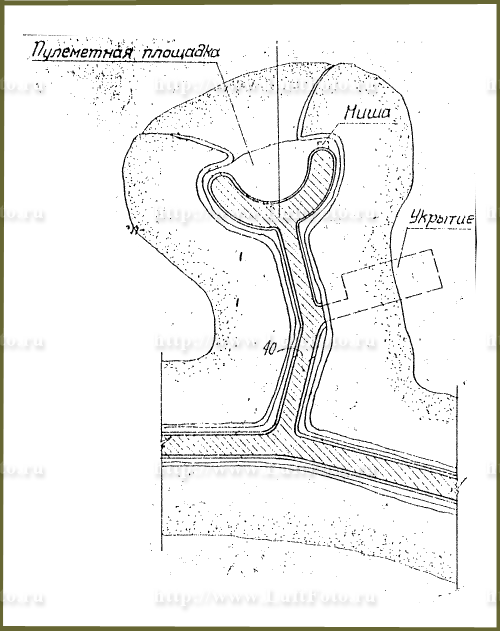

Dugout for a german MachineGuns Crews (MG-34, MG-42), the blueprint

Dugout for a german MachineGuns Crews (MG-34, MG-42) on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000.


Dugout for a german MachineGuns Crews (MG-34, MG-42) on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000 Dugout for a german MachineGuns Crews (MG-34, MG-42) on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000

Dugout for ga erman Mortar Crews on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000


The blueprint

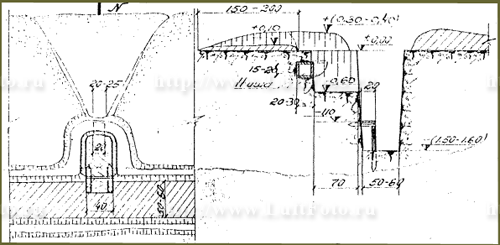

Dugout for german Mortar Crews, the blueprint

Dugout for a german Mortar Crews on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000 ~ 1:8000.


Dugout for a german Mortar Crews on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~ 1:8000 ~ 1:8000

Dugouts on the fronline


The blueprint


Укрытие/блиндаж на передовой.

Two dugouts and the MG nest with trences on the frontline, on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~1:8000.


Two dugouts and the MG nest with trences on the frontline, on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~1:8000

Dugouts behind the frontline, rear fortification.

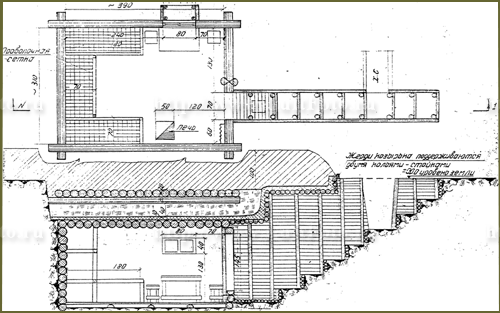

Dugouts behind the frontline, rear fortification. The blueprint.


Dugouts behind the frontline, rear fortification. The blueprint

Dugouts behind the frontline, rear fortification, on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~1:8000. Camouflaged by the camouflage net or by the grass.


Dugouts behind the frontline, rear fortification, on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~1:8000. Camouflaged by the camouflage net or by the grassDugouts behind the frontline, rear fortification, on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~1:8000. Camouflaged by the camouflage net or by the grass
Dugouts behind the frontline, rear fortification, on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~1:8000. Camouflaged by the camouflage net or by the grass

Plywood tents, behind the frontline, in the rear area. The blueprint.

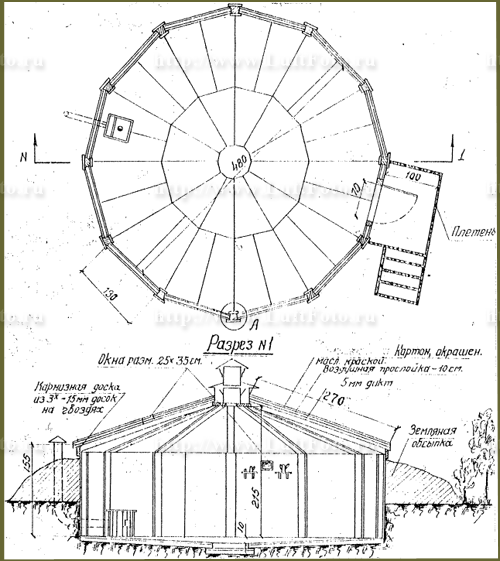

Фанерные палатки, замаскированные/не замаскированные и в процессе строительства/разобранные. Примерная схема.

Plywood tents, behind the frontline, in the rear area. During the building and already builded and camouflaged, German Luftwaffe Aerial Reconnaissance photogtaph, scale ~1:8000,1:12000.


Plywood tents, behind the frontline, in the rear area. During the building and already builded and camouflaged, German Luftwaffe Aerial Reconnaissance photogtaph, scale ~1:8000Plywood tents, behind the frontline, in the rear area. During the building and already builded and camouflaged, German Luftwaffe Aerial Reconnaissance photogtaph, scale ~1:8000
Plywood tents, behind the frontline, in the rear area. During the building and already builded and camouflaged, German Luftwaffe Aerial Reconnaissance photogtaph, scale ~1:8000

Anti-tank trenches

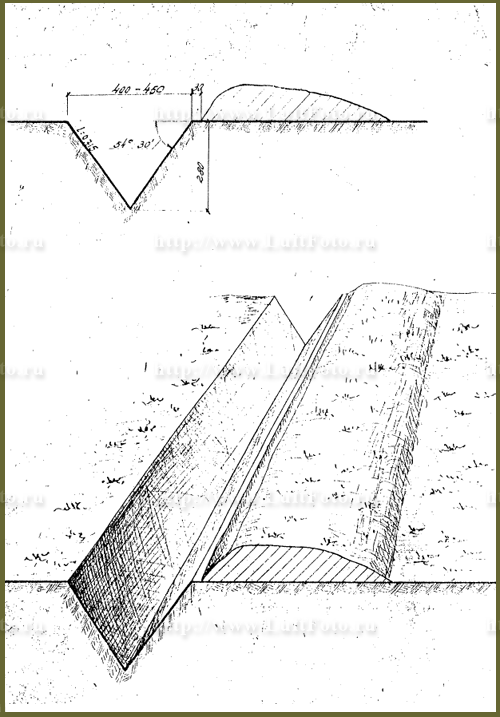

Anti-tank trench. The blueprint

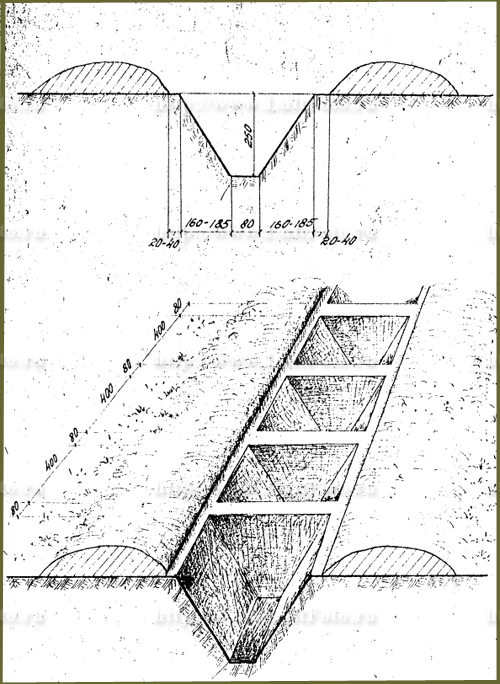

Anti-tank trench. The blueprint
Anti-tank trench. The blueprint

Anti-Tank trench on the German Luftwaffe Aerial Reconnaissance photogtaph, scales ~1:8000,1:15000.


Anti-Tank trench on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~1:15000.Anti-Tank trench on the German Luftwaffe Aerial Reconnaissance photogtaph, scale ~1:15000.
